Product Description

A Fully Programmable UPS, Voltage Regulator and Power Conditioner.For home theater systems, the MB1000 prevents critical equipment from losing its setup configuration and stored data, while avoiding hard-disk crashes in the event of a sustained power event, such as a power outage. In addition, the UPS safeguards projection bulbs by allowing them to cool down properly before shutting off, saving money on replacement costs.The MB1000¿s Automatic Voltage Regulation (AVR) prevents home theater equipment lock-ups due to power sags, while keeping connected components from heating up. The unit¿s IR control protects projection equipment by allowing projection bulbs to go through a proper cool-down cycle before shutting off. An RS232 serial communication port provides connection and communication between the UPS and a HTPC (home theater personal computer) or home automation system. The UPS features eight battery-powered, surge protected, and AVR outlets (four non-critical-load outlets, and four critical-load outlets) that ensure temporary uninterrupted operation of connected equipment during a power failure, while resettable circuit breakers provide optimal overload protection. The MB1000¿s front panel offers an intuitive menu navigation system and LCD status display that monitors the incoming line voltage and displays battery time remaining in case of a power loss.

---

Product Details

• Brand: Panamax
• Model: MB1000
• Dimensions: 4.00" h x 17.00" w x 13.00" l, 36.00 pounds

Features

• MB1000 prevents critical equipment from losing setup configuration, stored data and hard-disk crashes. Shuts off projection equipment via IR control to allow the projector bulbs to go through a proper cool-down cycle before shutting off.
• Surge Protection and AVM
• LiFT Noise Filtration
• Dual Learning IR Output Controls
• RS-232 with Open Source Code Protocol

From the Manufacturer

The Panamax MB1000 Battery Backup to Monitor Critical and Non-Critical Equipment

The Panamax MB1000 Battery Backup device prevents critical equipment from losing setup configuration, stored data and hard-disk crashes. It shuts off projection equipment through an IR control to allow the projector bulbs to go through a proper cool-down cycle before shutting off. It is a fully programmable UPS, Voltage Regulator and Power Conditioner.

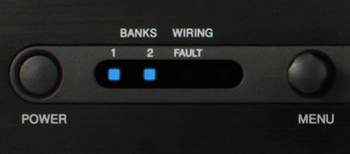

Monitor both critical and non-critical power banks

Critical Protection for Home Theaters

For home theater systems, the MB1000 prevents critical equipment from losing its setup configuration and stored data, while avoiding hard-disk crashes in the event of a sustained power event, such as a power outage. In addition, the UPS safeguards projection bulbs by allowing them to cool down properly before shutting off, saving money on replacement costs. The MB1000's Automatic Voltage Regulation (AVR) prevents home theater equipment lock-ups due to power sags, while keeping connected components from heating up.

The unit's IR control protects projection equipment by allowing projection bulbs to go through a proper cool-down cycle before shutting off. An RS232 serial communication port provides connection and communication between the UPS and a HTPC (home theater personal computer) or home automation system. The UPS features eight battery-powered, surge protected, and AVR outlets (four non-critical-load outlets, and four critical-load outlets) that ensure temporary uninterrupted operation of connected equipment during a power failure, while resettable circuit breakers provide optimal overload protection. The MB1000's front panel offers an intuitive menu navigation system and LCD status display that monitors the incoming line voltage and displays battery time remaining in case of a power loss.

Custom Controls for a Personal Touch

The Critical Load Function allows you to the ability to program custom power thresholds. One of the user programmable settings in the MB1000 software is the Low Battery Non-Critical Load (NCL) Shutoff threshold. This sets the battery capacity level at the point where the NCL outlets are turned off and all remaining battery power is reserved for equipment plugged into the 4 critical load outlets. This value is stored internally by the UPS and is not dependent on having the software running on a computer.

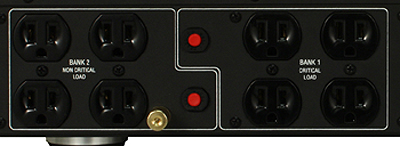

Two banks of outlets for critical and non-critical equipment

Patent-pending Learning IR Control gives you control of your UPS device like never before. The learning IR function lets you program the UPS to send standby or shut-down commands to components such as DLP ceiling projectors. If the power fails, the projector’s lamps are turned off while the UPS continues providing battery power to the projector’s cooling fan. Proper shutdown is ensured and expensive lamps are protected from damage.

IR Power Failure Operation is essential to protecting your equipment. The UPS can learn two IR commands. The learned commands will be transmitted on both output jacks so you have the ability to control 2 different pieces of equipment or use a 2-step macro for one component. After a power failure and the selected delay, the IR codes will be sent to both outputs. The IR LED’s will flash once per second during the delay time and will stop flashing after the IR code is sent. If the delay settings are the same for both IR1 and IR2, the IR2 code will be sent to both outputs 2 seconds after IR1. The IR commands will also be transmitted immediately after the battery charge falls below the critical load battery threshold. This ensures that equipment will be shutdown properly if the UPS’s load level is extremely high and the backup time would be less than the selected IR output delay. There is no IR output after the power is restored to the system.

---

Technical Specifications

• Weight: 36 lbs
• Dimensions: 17W x 13D x 4H inches
• Voltage Input: 85 - 137 VAC
• Frequency Input: 57-63 Hz
• Undervoltage Shutoff: 90 ±5V
• Surge Protection: 900 Joules
• Overvoltage Shutoff, slow rise: 132 ±5V
• Overvoltage Shutoff, fast rise: 150 ±5V
• Current Rating: 12A
• Bank 2 EMI Filtration: 66dB Max, 100KHz-2MHz
• Bank 1 EMI Filtration: 66dB Max, 100KHz-2MHz
• Automatic Voltage Regulation, Standard Mode Output Range: 120 ±10%
• Automatic Voltage Regulation, Standard Mode Capture Range: 93-145V
• Automatic Voltage Regulation, Sensitive Mode Output Range: 120 ±5%
• Automatic Voltage Regulation, Sensitive Mode Capture Range: 98-135V
• Voltage Output: 120 ±5V, Simulated Sine Wave
• UPS Output Capacity: 1000VA 600W @ 0.6pf
• UPS Backup Time: 3 minutes at full load
• Transfer Time: Less than 10ms
• Frequency Output: 60 Hz ±1%

---
